Reinforcement Learning for Automated Penetration Testing

Have you ever caught yourself staring at those little "thinking" bubbles when you're chatting with ChatGPT or Perplexity? You know what I'm talking about, those moments where the AI seems to be working through something step by step, right there in front of you.

Here's the thing. That's not just some fancy UI trick.

What you're watching is reinforcement learning in action. These AI systems figured out something pretty remarkable on their own—when they slow down, break things apart, and actually show their reasoning, people respond way better. So they learned to think more like we do. Methodically. Step by step. Double-checking their work.

It's honestly kind of wild when you think about it. Nobody programmed them to do this thinking out loud thing. They discovered it worked through pure trial and error. Millions of conversations where showing their work got better feedback than just spitting out answers.

That process, learning what works through experience and adapting to get better results, that's reinforcement learning.

But first, let's talk about what this actually means.

Table of Contents

1. What Actually Is Reinforcement Learning?
2. A Glimpse of Penetration Testing
3. Why RL for Penetration Testing?
4. Method 1: Q-Learning for Penetration Testing
5. Method 2: Policy Gradient Approaches for Penetration Testing
6. Method 3-CLAP: Coverage-Based Reinforcement Learning for Penetration Testing
7. Conclusion

What Actually Is Reinforcement Learning?

Imagine you're trying to teach your dog to fetch. You don't sit down with a manual and explain the aerodynamics of frisbee flight. Instead, you throw the frisbee, and when your dog brings it back, you give them a treat. When they ignore it and chase a squirrel instead, no treat. Pretty simple, right?

That's reinforcement learning in a nutshell.

‍

Every RL setup has four main characters:

1. The Agent - This is your learner. Could be an AI, a robot, or in our dog example, your very confused golden retriever. The agent is the one making decisions and trying to figure out what works.
2. The Environment - This is the world the agent lives in. For your dog, it's your backyard. For a chess-playing AI, it's the board with all its pieces and possible moves.
3. Actions - These are all the moves your agent can make. Your dog can fetch, sit, roll over, or chase that squirrel. A chess AI can move any piece according to the rules.
4. Rewards - This is the feedback system. Treats for good behavior, nothing for bad behavior. In chess, maybe winning gets a +1, losing gets a -1, and draws get 0.

The Ultimate Goal

The whole point of reinforcement learning is dead simple: maximize rewards over time.

Your dog learns that fetching = treats, so they develop a policy of "always fetch the frisbee." A game-playing AI learns that certain move sequences lead to victories, so it develops increasingly sophisticated strategies.

But here's what makes RL so powerful: it's not just about getting immediate rewards. The agent learns to think ahead. Maybe sacrificing a piece now leads to checkmate in three moves.

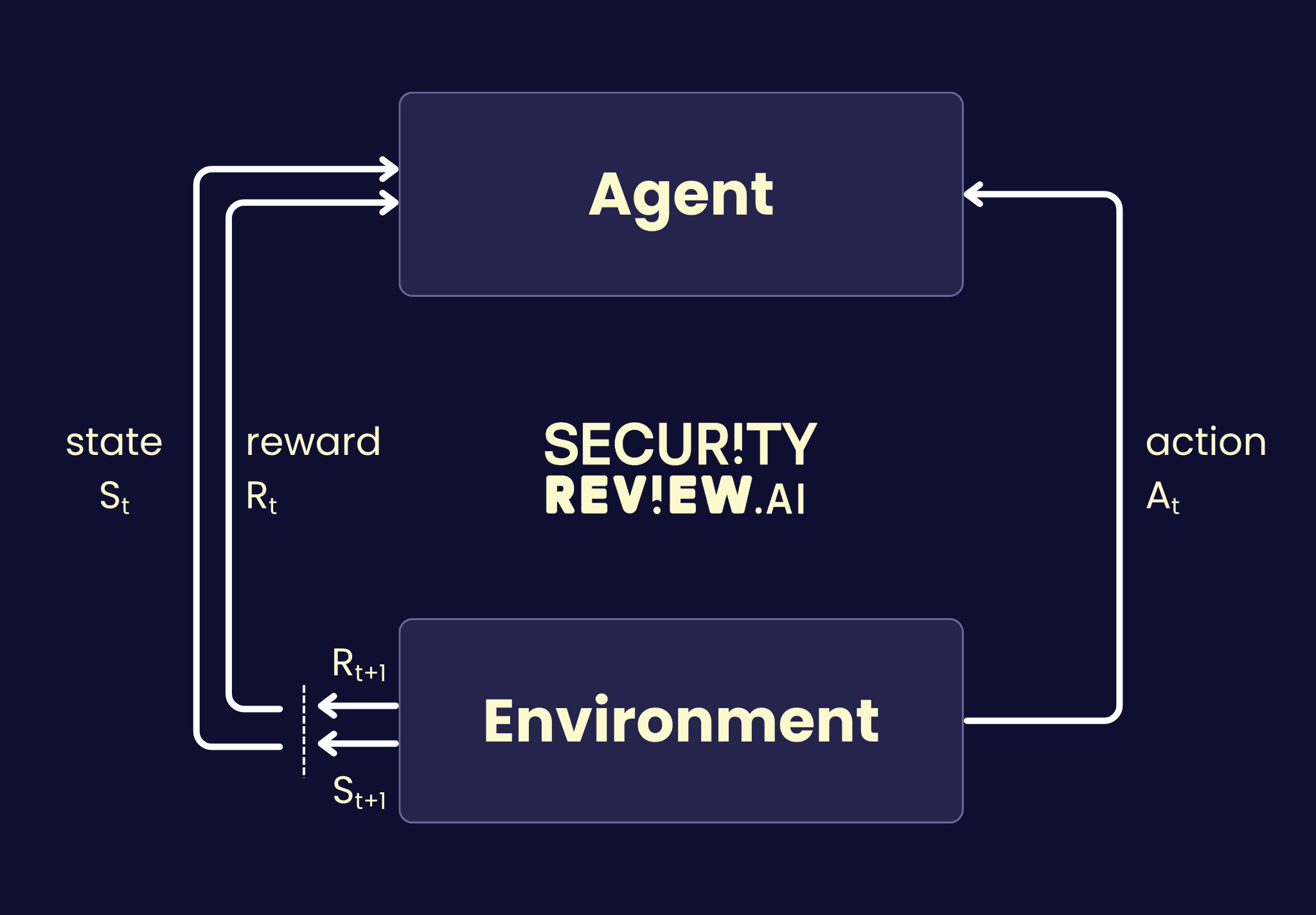

The Learning Loop

The magic happens in this constant cycle:

1. Agent observes the current situation
2. Picks an action based on its current policy
3. Gets feedback from the environment
4. Updates its policy to do better next time
5. Repeat... forever

It's messy. It's inefficient. The agent makes tons of mistakes early on. But gradually, through pure persistence and feedback, it gets scary good at whatever you're trying to teach it.

A Glimpse of Penetration Testing

Penetration testing is an authorized simulated cyberattack performed on computer systems to evaluate their security posture. Security professionals, known as ethical hackers or penetration testers, deliberately attempt to exploit vulnerabilities in networks, applications, and infrastructure to identify weaknesses before malicious actors can find and abuse them.

The Standard Methodology

Penetration testing follows a systematic five-stage process:

• Planning and reconnaissance - Define scope and gather information about target systems through public sources and technical scanning
• Scanning - Use various tools to understand how target applications respond to intrusion attempts, employing both static and dynamic analysis
• Gaining access - Exploit identified vulnerabilities using techniques like SQL injection, cross-site scripting, or other attack vectors
• Maintaining access - Establish persistent presence within compromised systems through backdoors or privilege escalation
• Analysis - Compile findings into comprehensive reports detailing exploited vulnerabilities and recommended fixes

Types and Approaches

Tests are categorized by the amount of information provided to testers beforehand:

• Black box testing - Minimal information provided, simulating external attacker scenarios
• White box testing - Complete system documentation and access provided
• Gray box testing - Limited knowledge of target systems.

‍

Why RL for Penetration Testing?

The intersection of reinforcement learning and penetration testing represents more than just technological convenience—it addresses fundamental limitations in current cybersecurity practices while leveraging the natural decision-making structure of both domains.

The Decision-Making Alignment

Penetration testing is inherently a sequential decision-making process under uncertainty. Testers observe system responses, evaluate potential attack vectors, and adapt their approach based on discovered information. This mirrors the core RL framework: an agent observing states, selecting actions, and receiving feedback to optimize future decisions. Unlike rule-based automated tools that follow predetermined scripts, RL agents can develop dynamic strategies that evolve with each testing engagement.

Addressing Scale and Consistency

Current penetration testing faces significant scalability issues. Human testers are limited by time, cognitive load, and availability. An RL agent can simultaneously evaluate multiple attack paths, maintain consistent testing quality across different environments, and operate continuously without fatigue. This addresses the industry's growing need for more frequent and comprehensive security assessments as attack surfaces expand.

Adaptive Learning Capabilities

Traditional automated security tools rely on signature-based detection and predefined vulnerability databases. They struggle with novel attack combinations or environment-specific exploitation techniques. RL agents learn from experience, gradually improving their ability to identify non-obvious vulnerability chains and adapt to different network architectures. Research demonstrates that these agents can discover multi-step attack paths that conventional tools miss, often finding creative combinations of minor vulnerabilities that aggregate into significant security risks.

Method 1: Q-Learning for Penetration Testing

Q-learning in RL is like teaching someone to play chess by letting them learn from their wins and losses. The "Q" stands for "quality"—essentially, the algorithm learns to estimate how good each possible move is in any given situation. Instead of being told the rules, the agent discovers through trial and error which actions lead to the best outcomes.

In penetration testing, this translates to an AI agent learning which attack techniques work best in different network scenarios. The agent doesn't start with a playbook of exploits—it develops its own strategy by trying different approaches and learning from what succeeds or fails.

Q-Learning Components in Penetration Testing:

• State Space - The current network situation including discovered hosts, open ports, identified services, compromised systems, and current privilege levels
• Action Space - All possible moves the agent can make: port scanning, vulnerability exploitation, lateral movement, privilege escalation, or reconnaissance activities
• Q-Table/Function - A learned database that maps each network state to the expected "quality" or reward of each possible action
• Reward System - Points awarded for successful compromises, penalties for detection, and bonuses for maintaining stealth while discovering vulnerabilities
• Learning Process - The agent updates its Q-values based on actual outcomes, gradually building expertise about which attacks work in which situations

How Q-Learning Agents Learn to Hack:

• Initial Exploration - The agent starts with no knowledge, trying random actions like scanning different ports or attempting various exploits
• Experience Collection - Each action provides feedback—successful exploits get positive rewards, failed attempts get neutral or negative scores
• Strategy Refinement - The Q-function continuously updates, learning patterns like "SQL injection works better on web servers than database servers"
• Exploitation Phase - Once trained, the agent can quickly identify optimal attack paths by consulting its learned Q-values
• Adaptation Capability - Unlike static tools, Q-learning agents adapt their strategies when they encounter new network configurations or defensive measures

Practical Advantages:

• No Prior Knowledge Required - The agent doesn't need pre-programmed attack signatures or vulnerability databases
• Dynamic Strategy Development - Learns to chain multiple small vulnerabilities into significant breaches
• Environment-Specific Optimization - Develops tactics tailored to specific network architectures and security configurations
• Continuous Improvement - Gets better with each penetration test, building a more sophisticated understanding of attack strategies.

Method 2: Policy Gradient Approaches for Penetration Testing

Policy gradient methods of RL take a different approach than Q-learning—instead of learning the value of actions, they directly learn the strategy itself. Think of it like learning to play poker by gradually adjusting your playing style based on feedback, rather than memorizing a chart of what to do in every situation. The algorithm directly tweaks the chances of choosing different moves until it finds the best approach.

In penetration testing, this means the AI agent learns a flexible strategy for selecting attacks. Instead of always picking the same action in identical situations, it learns when to be aggressive, when to be sneaky, and when to try something completely different.

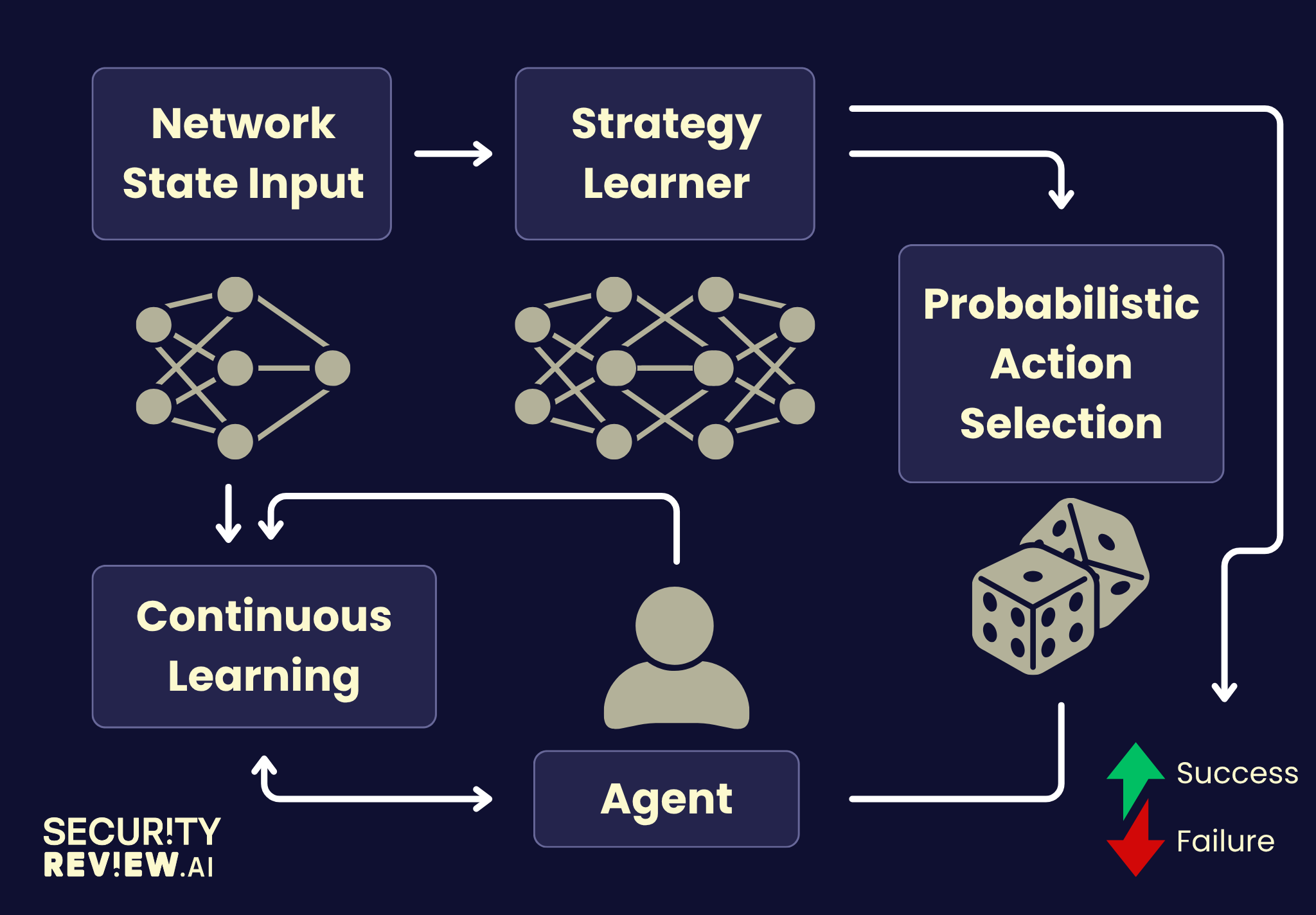

Policy Gradient Components in Penetration Testing:

• Strategy Learning - A system that takes the current network situation and outputs chances for different attack actions (like 60% chance to scan, 30% to exploit, 10% to gather info)
• Flexible Decision Making - The agent doesn't always pick the same action in identical situations; it mixes things up based on learned probabilities
• Direct Strategy Improvement - The algorithm directly makes the decision-making strategy better without needing to calculate action values
• Learning from Complete Tests - The agent runs full penetration tests, then adjusts its strategy based on how well the entire test went
• Probability-Based Updates - Actions that led to successful hacks get higher chances of being chosen again; failed approaches get lower chances

How Policy Gradient Agents Learn to Hack:

• Mixed Attack Selection - Instead of always choosing "scan this port," the agent might have different probabilities for scanning, trying exploits, or gathering more information
• Learning from Success - After each penetration test, attack sequences that worked get boosted while failed approaches get reduced
• Discovering New Paths - The random nature means agents try different attack routes, potentially finding new ways to break into systems
• Staying Undetected - Agents learn when to change their attack patterns to avoid being caught by security systems
• Planning Multi-Step Attacks - Good at learning complex attack strategies that require multiple steps to succeed

Practical Benefits for Penetration Testing:

• Fine-Tuned Control - Can learn precise settings like timing delays, scan speeds, or payload modifications
• Harder to Detect - Random behavior makes it tougher for security systems to recognize and block attack patterns
• Creative Problem Solving - Random exploration leads to novel ways of chaining vulnerabilities that rigid methods miss
• Adapts to Changes - Continuously adjusts strategy as network defenses improve or new weaknesses appear
• Balances Multiple Goals - Can juggle competing objectives like staying hidden vs. being thorough vs. working quickly.

‍

Method 3-CLAP: Coverage-Based Reinforcement Learning for Penetration Testing

CLAP stands for Coverage-Based Reinforcement Learning to Automate Penetration Testing—think of it as an AI system that learns to be a comprehensive cybersecurity explorer rather than just following the same attack paths repeatedly. Unlike traditional automated tools that often get stuck using familiar techniques, CLAP actively seeks out unexplored areas of a network, making sure no potential vulnerability gets overlooked.

The system tackles a major problem in automated penetration testing: as networks get bigger, the number of possible actions explodes, making it nearly impossible for agents to learn effectively. CLAP solves this by using a "coverage mechanism" that's like having a smart memory system that remembers what's already been tested and focuses attention on new areas.

CLAP Components for Penetration Testing:

• Coverage Mechanism - A smart system that tracks which network areas and attack methods have been explored, preventing the agent from wasting time on repetitive actions
• Chebyshev Decomposition Critic - A specialized learning component that helps the agent balance multiple goals simultaneously (like being thorough vs. staying stealthy vs. working quickly)
• Action Space Management - As the agent discovers more about the network, new attack options become available; CLAP handles this growing complexity intelligently
• Multi-Objective Learning - Unlike single-goal systems, CLAP learns to juggle competing objectives like maximizing vulnerability discovery while minimizing detection risk
• Behavior Diversity Engine - Ensures the agent develops varied attack strategies rather than getting stuck in repetitive patterns

How CLAP Works in Practice:

• Systematic Exploration - Like a thorough detective, CLAP maps out unexplored network areas and prioritizes testing methods that haven't been tried yet
• Adaptive Strategy Selection - The agent learns when to use aggressive scanning techniques versus subtle probing based on what it discovers about the network's defenses
• Scalability Handling - Can effectively test massive networks with up to 500 hosts, far beyond what previous RL methods could handle (typically limited to around 100 hosts)
• Efficient Path Finding - Discovers optimal attack sequences while avoiding redundant actions that waste time and potentially trigger security alerts
• Real-Time Learning - Continuously updates its strategy as it gathers more information about the target network's structure and vulnerabilities

Practical Advantages:

• Reduced Testing Time - Achieves nearly 35% reduction in the number of steps needed to identify network vulnerabilities compared to existing methods
• Comprehensive Coverage - The coverage mechanism ensures thorough assessment of large-scale networks without missing critical areas
• Diverse Attack Strategies - Develops multiple different approaches to penetration testing, providing more comprehensive security assessments
• Stable Training - Enhanced training efficiency and stability make it practical for real-world deployment on large networks
• Multi-Goal Optimization - Successfully balances competing objectives without requiring manual parameter tuning.

Conclusion

We've covered a lot of ground here—from understanding how those "thinking" chains in ChatGPT work to exploring sophisticated methods like Q-learning, policy gradients, and systems like CLAP that can test networks with 500+ hosts while reducing testing time by 35%. The research is promising, and the practical applications are starting to show real results. But here's the reality: we're still in the early stages of what could be a fundamental shift in how we approach cybersecurity.

This isn't about replacing human penetration testers—it's about giving them superpowers. Imagine having an AI assistant that handles the systematic grunt work while human experts focus on the creative, high-level strategy that still requires human insight. The organizations that start experimenting with these techniques now will have a significant advantage as the technology matures. Whether one’s a cybersecurity practitioner, manager, or just someone fascinated by the intersection of AI and security, this space is worth watching closely. The question isn't whether reinforcement learning will transform penetration testing—it's whether you'll be ready when it does.
